All-in-One Solar Street Light A23 - IP65 Solar LED - Road & Park Area Lighting (Photo 1 of 5)

All-in-One Solar Street Light A23

Name: All-in-One Solar Street Light A23 | 3 Sizes, 1300–1950 lm
Brand: Qichenshop
SKU: A23

OEM Available

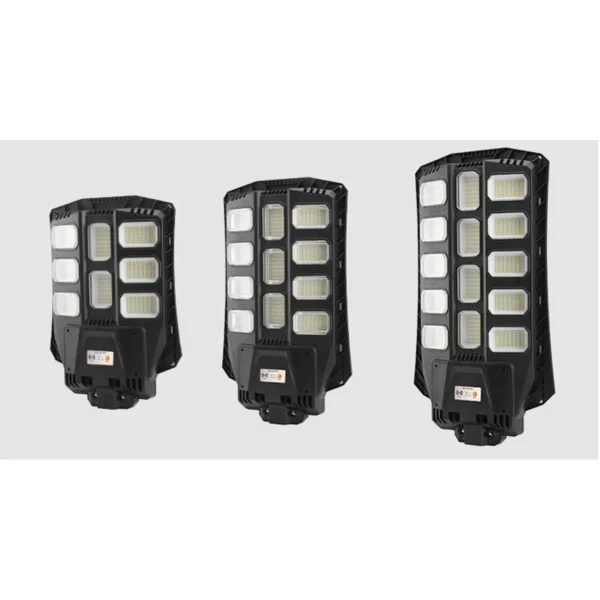

All-in-one solar street light in 3 T-series sizes (T-300/400/500) with a bottom integrated control panel for rural footpaths, village lanes and courtyards.

Model	A23
Material / Grade	Plastic shell + PC diffusion plate
MOQ	50 units
Lead Time	15 days after deposit
Certification	CE / RoHS / IP65

5-Year Limited Warranty — See Warranty Policy Request a Sample — Fees refundable on bulk orders

Inquire About This Model Request Sample of A23

Size Selection - A23

Same housing, optics and warranty across all 3 sizes. Only the panel, battery, LED power and luminous flux scale with the configuration - match the row to your mounting height and required illuminance, then quote by model code.

Configuration	Model No.	LED Power	Luminous Flux	Solar Panel	Battery (LiFePO4)	Lamp Body (mm)	Mounting Height	Pole Spacing
531mm Model	QC-SL017-50WS	10 W	1300 lm	20 W	15Ah LiFePO4	531×391×75	3~4 m	12~15 m
681mm Model	QC-SL017-100WS	12 W	1560 lm	25 W	20Ah LiFePO4	681×391×75	3~4 m	12~16 m
760mm Model	QC-SL017-150WS	15 W	1950 lm	30 W	25Ah LiFePO4	760×391×75	3~4 m	15~20 m

All configurations share the same pole fitting and are shipped mixed within one MOQ of 50 units. Exact packing data is listed on the model datasheet.

The same across all 3 sizes

Material: Plastic shell + PC diffusion plate
Optical platform: rectangular lens modules (6-10 by power tier) with bottom integrated control panel

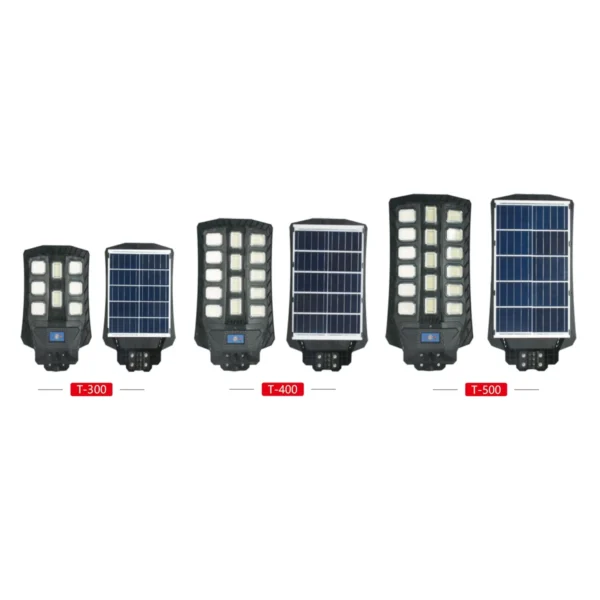

Family: standardized T-series matrix (T-300 / T-400 / T-500)
Battery: Brand-new Grade A LiFePO4, 10-12 h working time, 5-6 h recharge
Warranty / MOQ: 5-Year Limited Warranty, MOQ from 50 units

What changes between sizes

Body length531–760 (by size)
LED power10–15 W (by size)
Luminous flux1300–1950 lm (by size)
Solar panel20–30 W (by size)
Battery15–25 Ah (by size)
Mounting height3–4 m (by size)

Need pricing, a firm lead time or a project quotation for this model? Our engineers reply with the configuration and figures for your market.

Request a Quotation for A23

Support OEM customization

Support customization of LOGO, CCT, and power.

Execution Within a Lightning Timeline of 15 Days

5-Year Limited Warranty, high quality, timely delivery

Dedicated Support

Monday to Saturday, 8:30 AM – 9:00 PM (GMT+8)

Contact Email

info@qichenshop.com

Contact Now

Description
Reviews (0)

Product Overview:
The A23 all-in-one solar street light integrates a monocrystalline solar panel, LiFePO4 battery, LED module and smart controller in a single weatherproof plastic housing. It mounts on a pole or wall without trenching or grid wiring and switches on automatically at dusk. The A23 series comes in 3 body sizes from 531 mm to 760 mm, delivering 1300 to 1950 lm depending on the size selected – see the size selection table above for the exact panel, battery and lumen figures of each size.

Key Features:
All-in-One Design: panel, battery, LED and controller are factory-matched in one housing, so there is no wiring or component matching to do on site.
The core differentiator of this street light lies in its standardized “T-series” family matrix (T-300/400/500), featuring an intuitive progression of 6 to 10 rectangular lens modules to precisely grade power, paired with a bottom integrated control panel, enabling clear model selection and high-efficiency illumination.
Mixed Sizes, One Order: mixed sizes are allowed within one MOQ from 50 units order, so a whole village project can be covered from a single purchase order.
LiFePO4 Battery: long cycle life and stable output in high ambient temperatures, sized for full-night operation.
Smart Light Control: light and motion sensors adjust brightness through the night to extend runtime and cut wasted energy.
Durable Housing: IP65-rated plastic shell with a polycarbonate diffuser, waterproof, wind-resistant and heat-resistant for harsh outdoor sites.
5-Year Limited Warranty: covered by our published warranty policy, with component terms and the claim process stated online.

Application Scenarios:
Rural footpaths
T-series graded power
Courtyards & orchards
General village lighting

Conclusion:
The A23 range brings maintenance-light lighting to off-grid villages and rural roads. Confirm the size that matches your pole height and spacing in the size selection table, or contact our engineers for a free lighting layout before you order.

Reviews

There are no reviews yet.

Be the first to review “All-in-One Solar Street Light A23”

Where This Model Works

Typical working conditions for A23 - matching the fixture to the site is the first step of a lighting plan.

Rural footpaths
T-series graded power
Courtyards & orchards
General village lighting

Technical Documentation

Designed and tested to CE and RoHS requirements; IP65 ingress protection.
Full test reports available on request for your market registration.
Configuration options: CCT, panel / battery capacity and pole compatibility confirmed with our engineers before order.

Download A23 Datasheet (PDF)

Typical Projects with A23

Municipal road lighting

Single-side mounting at 6-8 m pole height, 25-30 m spacing - dusk-to-dawn operation with motion-dimming for low-traffic hours.

Parking & perimeter areas

Full-night output for security lighting in commercial parking lots, logistics yards and factory perimeters; no trenching or grid wiring required.

Campus & community paths

Pedestrian-scale illumination for residential communities, schools and parks with timer / sensor control to cut energy waste after midnight.

What Problem Does A23 Solve

If you are tendering or reselling outdoor lighting, the problems are rarely about the fixture itself - they are about the site:

No grid within reach. Trenching and cabling for new poles often costs more than the lights. A fully integrated solar unit removes the civil works entirely.
Unpredictable electricity cost. The fixture pays for itself in avoided energy bills and keeps running when the grid does not.
High-maintenance installations. Sealed IP65 housing, lithium battery and motion-dimming profile are configured for years of dusk-to-dawn operation with minimal site visits.

All-in-one solar street light in 3 T-series sizes (T-300/400/500) with a bottom integrated control panel for rural footpaths, village lanes and courtyards.

How to Choose the Right Spec

Match LED power to pole height and mounting spacing first - over-lighting a road wastes battery capacity every night:

LED Power	Pole Height	Mounting Spacing	Typical Application
10 W	3~4 m	12~15 m	Rural footpaths and narrow village lanes (pedestrians and light motorcycle traffic)
12 W	3~4 m	12~16 m	Courtyards, orchards, field walkways and in-village footpaths
15 W	3~4 m	15~20 m	Rural footpaths, narrow village lanes and general village lighting

Every datasheet in our catalog lists the exact panel, battery and lumen figures - and our engineers confirm the final layout with a lighting simulation before you order.

Compliance & Standards

Luminaire safety: designed to IEC 60598-1 / GB 7000.1 requirements.
LED light sources: IEC 62031; photobiological safety: IEC 62471.
Ingress protection verified to IP65 per IEC 60529.
CE & RoHS documentation available; customer and market-specific specifications supported on request.

Frequently Asked Questions - A23

What is the minimum order quantity (MOQ)?

MOQ is 50 units per model. Mixed models can be combined in one container - confirm the split with our sales team when requesting a quote.

What is the lead time for A23?

Standard lead time is 15 days after deposit and configuration confirmation. Large or fully customized orders are scheduled individually.

Which certifications and test reports do the fixtures carry?

Fixtures are designed and tested to CE and RoHS requirements, with IP65 ingress protection verified before packing. Full test reports are available on request for your market registration.

Can I order a sample before bulk purchase?

Yes. Paid samples are available, and the sample fee is credited in full toward your first bulk order over 1,000 USD. Sample freight is charged collect. Fees, order limits and lead times are set out in the Sample Policy. View full policy

What are the payment terms?

We work on T/T terms: 30% deposit with order and 70% balance before shipment.

How are the lights packed for export?

Each unit is packed in an individual export carton with foam protection; full-container orders are palletized. Packing photos are provided before shipment.

What does the 5-Year Limited Warranty cover?

The 5-year limited warranty covers LED modules, solar panels, LiFePO4 batteries, controllers and the lamp housing against manufacturing defects, starting from the shipping date. Component terms, exclusions and the claim process are set out in the Warranty Policy. View full policy

Do you offer OEM/ODM customization?

Yes. OEM and ODM services are available from 50 units per model: logo, housing color, packaging, manuals and power configuration. Sampling and tooling terms are set out in the OEM & ODM Service page. View full policy

Last updated: September 26, 2026
